Primary Switchgear
PLGEAR
PLGEAR is Powerline's metal-clad, air-insulated switchgear for primary MV distribution with ABB VD4 vacuum circuit breakers up to 24 KV. Withdrawable, fully interlocked, and assembled and tested by Powerline in Egypt.
Rated voltage12 / 24 kV
Rated current1250 A
Short-time withstand31.5 kA · 3s
Internal arcIAC AFLR (4 sides)
Circuit breakerABB VD4 vacuum
StandardsIEC compliant
- Metal-clad, withdrawable design — service, test and racked-out breaker positions
- IAC AFLR — internal arc classified on all four sides
- ABB apparatus inside — VD4 vacuum breakers and protection relays

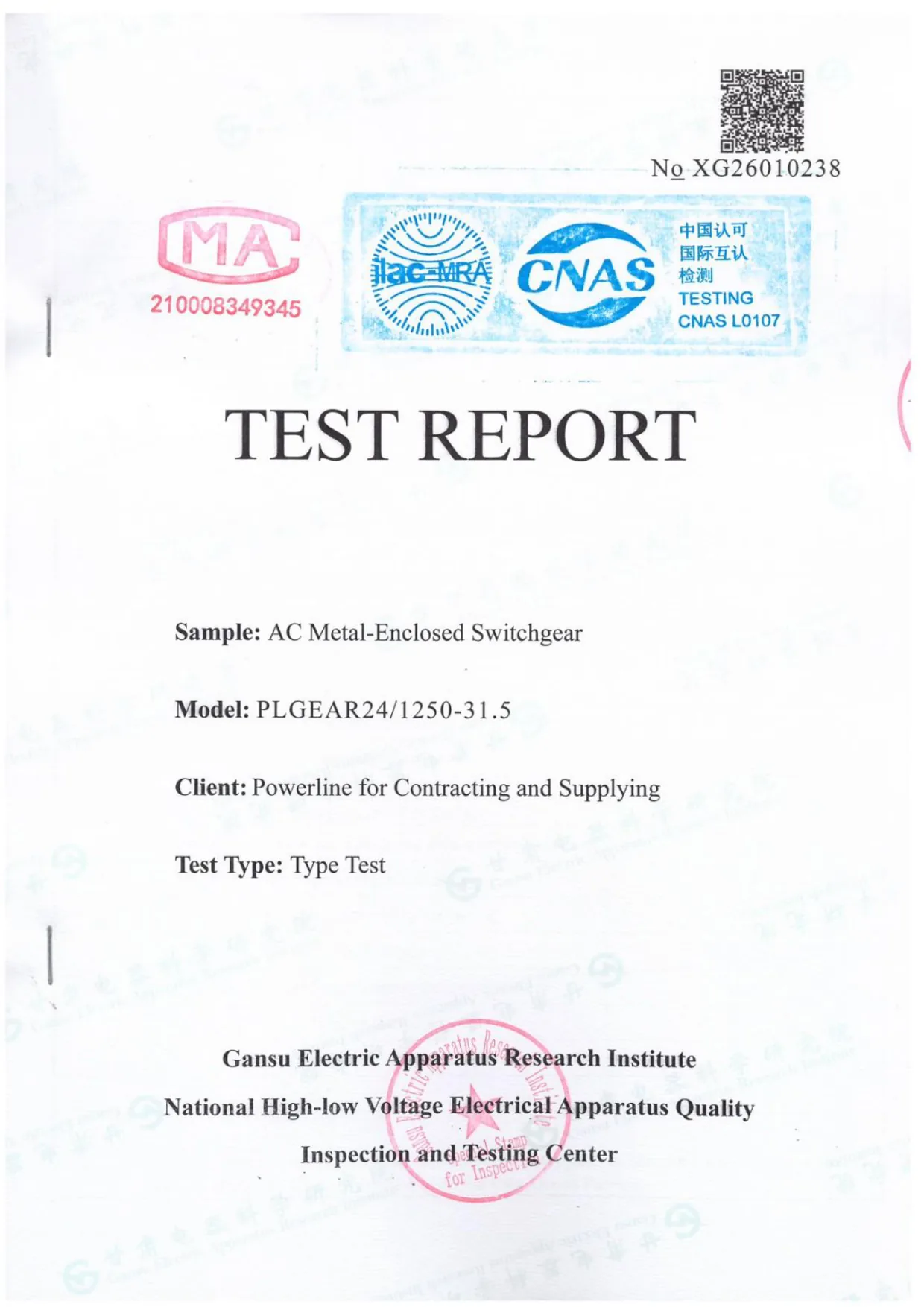

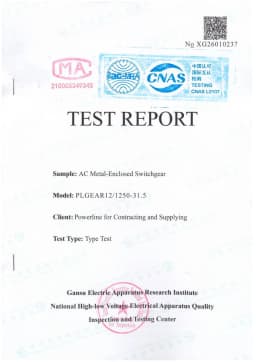

- Type-tested at 12 kV and 24 kV (1250 A, 31.5 kA)
- Assembled and tested by Powerline in Egypt
- IEC compliant
Interactive · 3D guided tourBuild Your PLGEAR
Inside PLGEAR
A guided walkthrough of the switchboard — busbars, VD4 breaker, instrument transformers, shutters and more, part by part. Turn the sound on, or step in and build your own.
Rated voltage12 / 24 kV
Main busbarup to 1250 A
BreakerABB VD4 vacuum
Tested toIEC type-tested
